POOL PUMP KITS & ACCESSORIES

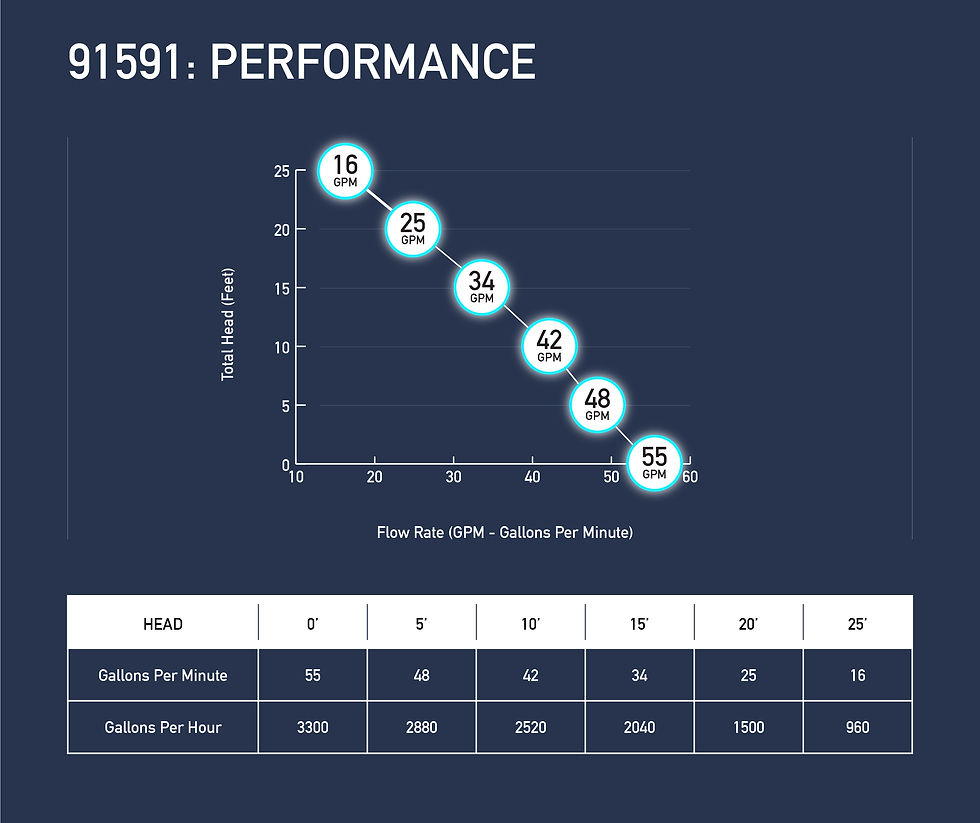

91591: 1/2 HP UTILITY KIT
Thermoplastic Construction
FEATURES
-
Continuous duty, thermally protected - split capacitor motor
-
Pumps will lift water up to 25' of vertical height
-
Tough thermoplastic construction
-
Large 1-1/2" discharge for high capacity pumping
-
Garden hose adapter included
-
50' PVC lay-flat hose included
-
1-1/2" NPT check valve included
-
Stainless hose clamp included
-
25' nylon rope included
-
Can be used as a sump pump by adding an optional float switch
Technical Specifications
HORSEPOWER | 1/3 |
AMPS | 4.1 |
CONSTRUCTION | Cast Iron |
SWITCH TYPE | Tethered |
DISCHARGE SIZE | 1-1/2“ |
DISCHARGE TYPE | Side |
CORD LENGTH | 25’ |
SOLIDS HANDLING | 3/8” |
IMPELLER TYPE | Stainless Steel |
SWITCH ON POINT | 10“ |
SWITCH OFF POINT | 5” |
LIQUID TEMP. RANGE | 35° F - 120° F |
PUMPS DOWN TO | 3/4” From Surface When Used As Utility |
WARRANTY | 3 Year |
OPTIONAL ACCESSORIES

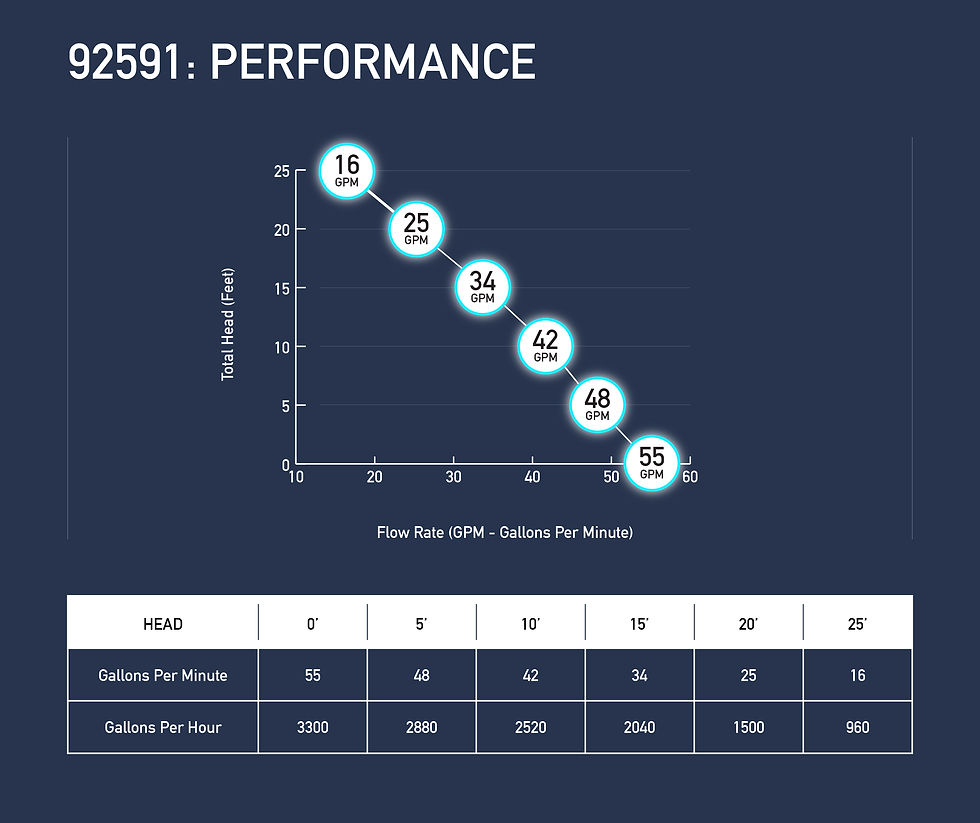

92591: 1/2 HP SUMP KIT
Thermoplastic Construction
FEATURES
-
Continuous duty, thermally protected - split capacitor motor
-
Pumps will lift water up to 25' of vertical height
-
Tough thermoplastic construction
-
Large 1-1/2" discharge for high capacity pumping
-
Garden hose adapter included
-
50' PVC lay-flat hose included
-
1-1/2" NPT check valve included
-
Stainless hose clamp included
-
25' nylon rope included
-
Can be used as a utility pump by removing the float switch
Technical Specifications
HORSEPOWER | 1/2 |
AMPS | 4.9 |
CONSTRUCTION | Thermoplastic |
SWITCH TYPE | Vertical |
DISCHARGE SIZE | 1-1/2“ |
DISCHARGE TYPE | Side |
CORD LENGTH | 10’ |
SOLIDS HANDLING | 3/8” |
IMPELLER TYPE | Stainless Steel |
SWITCH ON POINT | 6.5“ |
SWITCH OFF POINT | 2” |
LIQUID TEMP. RANGE | 35° F - 120° F |
PUMPS DOWN TO | 1” From Surface When Used As Utility |
WARRANTY | 3 Year |
OPTIONAL ACCESSORIES

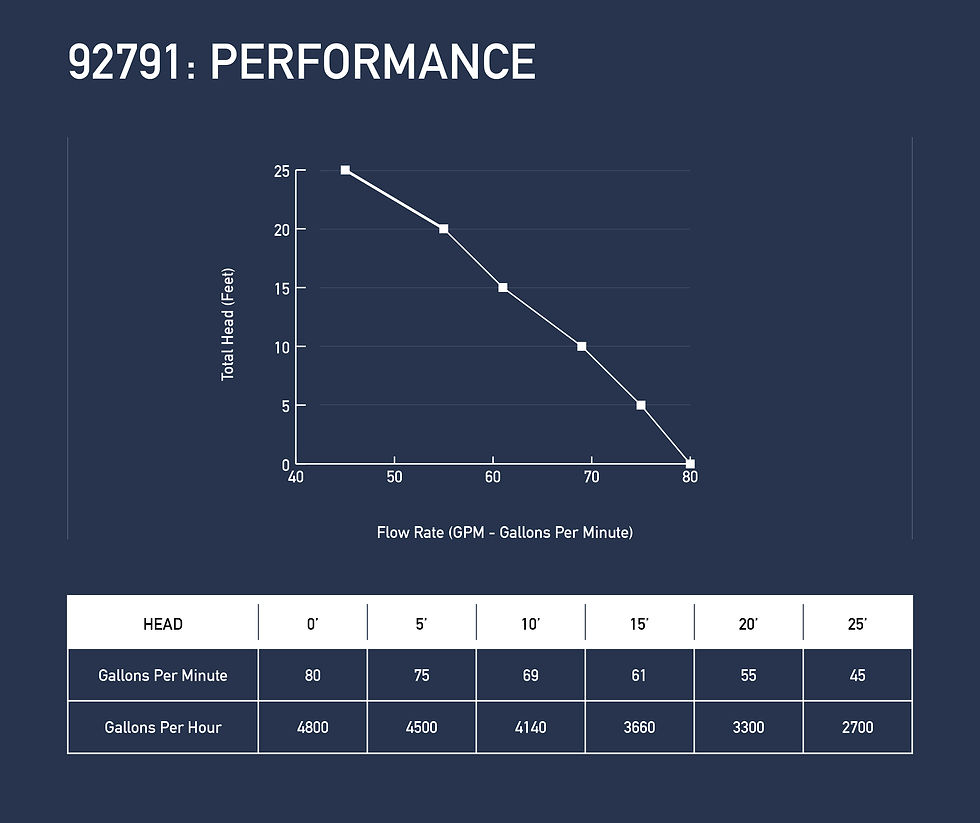

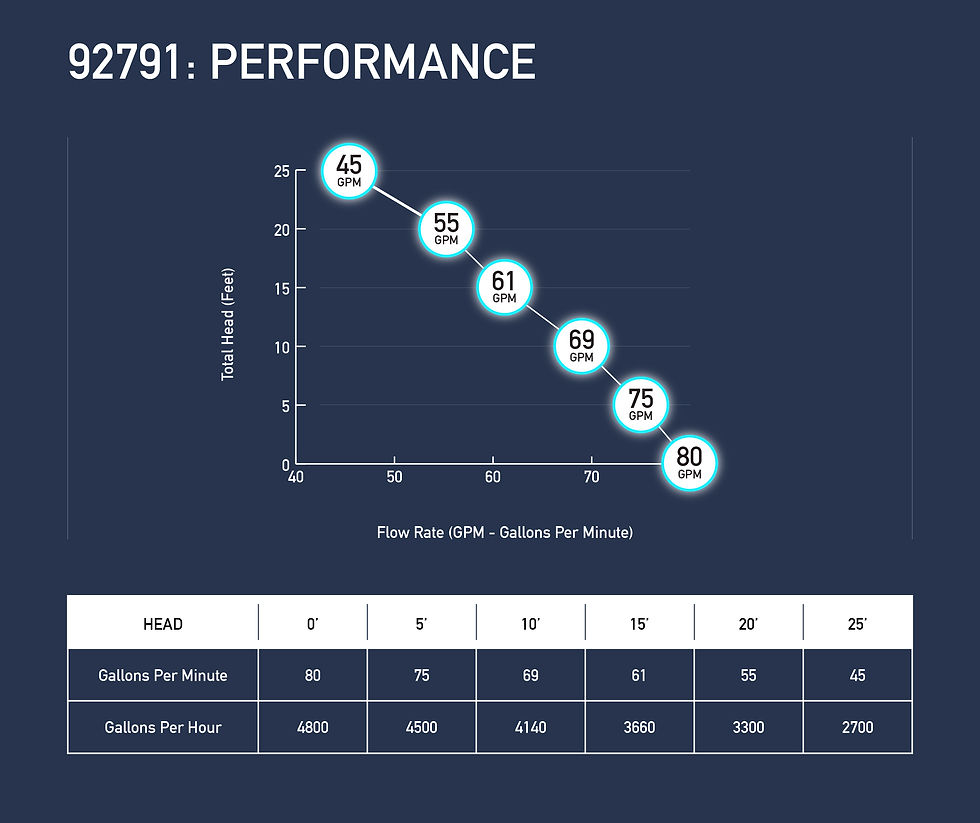

92791: 3/4 HP SUMP KIT
Stainless Steel & Cast Iron Construction
FEATURES
-
Continuous duty, thermally protected - split capacitor motor
-
Pumps will lift water up to 25' of vertical height
-
Rugged stainless steel and cast iron construction
-
Large 2" discharge for high capacity pumping
-
1-1/2" NPT adapter included
-
Garden hose adapter included
-
50' PVC lay-flat hose included
-
1-1/2" NPT check valve included
-
Stainless hose clamp included
-
25' nylon rope included
-
Clog resistant thermoplastic vortex impeller
-
Can be used as a utility pump by removing the float switch
Technical Specifications
HORSEPOWER | 3/4 |
AMPS | 7.5 |
CONSTRUCTION | Stainless Steel and Cast Iron |
SWITCH TYPE | Vertical |
DISCHARGE SIZE | 2“ |
DISCHARGE TYPE | Side |
CORD LENGTH | 25’ |
SOLIDS HANDLING | 1/2” |
IMPELLER TYPE | Thermoplastic |
SWITCH ON POINT | 8.5“ |
SWITCH OFF POINT | 3” |
LIQUID TEMP. RANGE | 35° F - 120° F |
PUMPS DOWN TO | 1” From Surface When Used As Utility |
WARRANTY | 3 Year |
OPTIONAL ACCESSORIES
99620: 50' x 1-1/2" LAY FLAT HOSE KIT
PVC Construction
FEATURES
-
For use with most sump and utility pumps
-
Easily rolls up for compact storage
-
Kit includes: 1-1/2” x 50’ reinforced PVC lay-flat hose with 1-1/2" Female Cam-lock and 1-1/2" Hose BARB (pre-assembled), 1-1/2" Male Cam-lock x 1-1/2" Hose BARB (for attaching additional hose kits together), 1-1/2" Male Cam-lock x 1-1/4" MPT, 1-1/4" FPT x 1-1/4" FPT or 1-1/2" MPT coupling, Stainless steel hose clamp
Technical Specifications
MODEL | 99620 |
LENGTH | 50' |
HOSE DIAMETER | 1-1/2" |
CONSTRUCTION | PVC |
